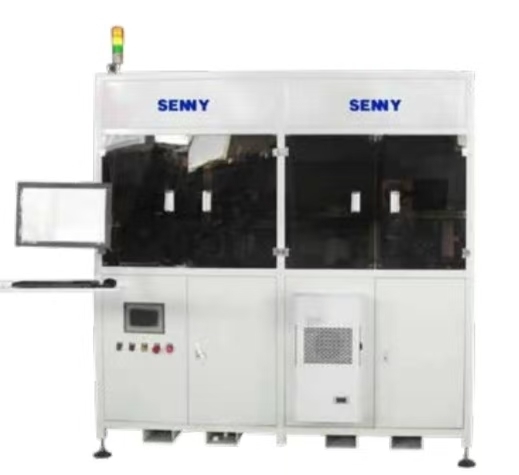

SOC007 Plastic Cap Closure Inspection Machine 3600 caps/min
उत्पाद विवरण:
| उत्पत्ति के प्लेस: | डोंगगुआन चाइना |
| ब्रांड नाम: | SENNY |
| प्रमाणन: | CE SGS |
| मॉडल संख्या: | SOC007 |
| दस्तावेज: | Plastic Cap offset printing...ne.pdf |
भुगतान & नौवहन नियमों:
| न्यूनतम आदेश मात्रा: | 1PC |
|---|---|
| मूल्य: | negotiable |
| पैकेजिंग विवरण: | प्लाईवुड पैकेज |
| प्रसव के समय: | 45 दिन |
| भुगतान शर्तें: | टी/टी |
| आपूर्ति की क्षमता: | 10 पीसी/महीना |
|
विस्तार जानकारी |
|||
| उत्पत्ति का स्थान: | Dongguan, चीन | प्लेट प्रकार: | बंद निरीक्षण -मशीन |
|---|---|---|---|
| मॉडल संख्या: | SOC007 | बिक्री के बाद सेवाएं: | वीडियो या ऑन-लाइन |
| प्रमुखता देना: | plastic cap closure inspection machine,camera cap printing machine,3 to 7 camera inspection machine |
||
उत्पाद विवरण
Machine Feature
- The product features a compact and aesthetically pleasing design, paired with stable and reliable performance that ensures an extended service life.
- Its 100% rejection design operates with high efficiency, significantly reducing the risk of defective final products and enhancing overall quality control.
- The unique design of the cap spacer feeder effectively lowers maintenance requirements and associated costs, optimizing long-term operational efficiency.
- The system is equipped with a high-performance configuration, including 7 GIGE cameras, a specially designed LED lighting system, and the JW inspection system, ensuring precise and reliable inspection processes.
Optional Configuration
- 25MM fixed focus lens: The 25MM fixed focus lens is engineered to deliver sharp and consistent imaging across a stable working distance. It ensures clear capture of fine details on product surfaces, making it ideal for detecting subtle defects or precise pattern alignment. With its fixed focal length, it minimizes image distortion, providing reliable visual data for the inspection system to analyze.
- Pinhole lens: The specialized pinhole lens is designed to excel in capturing high-contrast images even in challenging lighting conditions. Its unique optical structure allows it to focus on tiny imperfections, such as micro-scratches or pinhole-sized flaws that might be missed by standard lenses. This capability enhances the inspection system’s sensitivity, ensuring no critical defects go undetected.
- 360-degree lens: The 360-degree lens offers full circumferential imaging coverage, eliminating blind spots when inspecting cylindrical or irregularly shaped products. It captures comprehensive visual data from all angles in a single pass, reducing the need for multiple lens adjustments or product repositioning. This not only streamlines the inspection process but also ensures thorough quality checks on every part of the product surface.
Technical Parameters
| Machine Model | JWSH003-007/SOC007 |
| Speed | 3600 caps/min |
| Size | 2000*800*2060mm |
| Power | 6.5KW |
| Compressed air | 0.5MP |
About us:
Senny serves food, medicine, toys, cosmetics, daily chemicals, electronics, decorative products
and other industries. Through the use of automatic printing technologies, such as screen printing,
pad printing, hot stamping, labeling, offset printing and digital printing, it realizes printing high-quality
exquisite graphics & texts on the surface of various shapes of products such as plastic, metal, glass
and ceramics.
