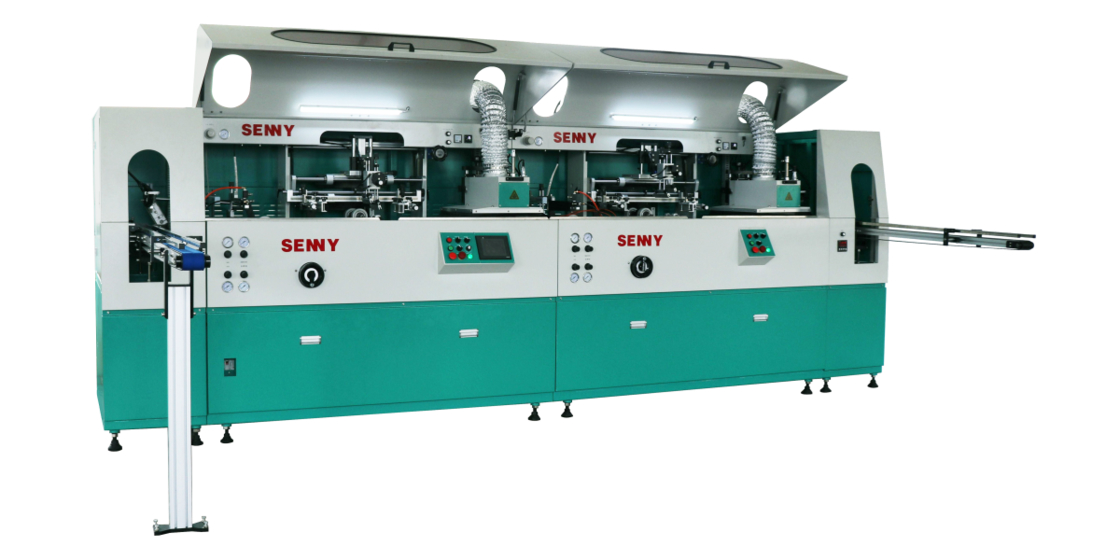

Linear Modular Bottle Screen Printer For Plastic Bottles Jars 1-12 Colors
उत्पाद विवरण:
| उत्पत्ति के प्लेस: | चीन |
| ब्रांड नाम: | Senny |
| प्रमाणन: | CE SGS |
| मॉडल संख्या: | एसएल1788 |
भुगतान & नौवहन नियमों:
| न्यूनतम आदेश मात्रा: | 1 सेट |
|---|---|
| मूल्य: | negotiable |
| पैकेजिंग विवरण: | प्लाईवुड पैकेज |
| प्रसव के समय: | एक माह |
| भुगतान शर्तें: | टी/टी |
| आपूर्ति की क्षमता: | 10pcs/महीना |
|
विस्तार जानकारी |
|||
| ऑटो ग्रेड: | पूरी तरह से स्वचालित | प्लेट प्रकार: | स्क्रीन प्रिंटर |
|---|---|---|---|
| मुद्रित रंग: | 1 से 12 | मुद्रण स्थायित्व: | उच्च स्थायित्व |
| गारंटी: | 1 वर्ष | बिक्री के बाद सेवा: | वीडियो या ऑन-लाइन |
| भुगतान शर्तें: | टी/टी | पैकेजिंग विवरण: | प्लाईवुड पैकेज |
| प्रमाणन: | CE | ||
उत्पाद विवरण
Linear Modular Bottle Screen Printer For Plastic Bottles Jars 1-12 Colors
1. Features:
SL1788: This automatic printer can print on cylindrical, oval and square plastic bottles with different colors of UV inks. With more than 1,000 units sold worldwide, it is the most popular machine on the market.
The machine has a modular construction, with each module including flame treatment, screen printing and UV curing functions, and linear connections for up to an 8-color integrated production line.
The machine can be connected to a foil stamping or labeling module for a multifunctional printing line with screen printing plus foil stamping or labeling, or to a visual product inspection module after printing to replace manual inspection.
The bottle feeding conveyor can be directly connected with bottle making equipment or with automatic bottle trimmer to replace manual bottle feeding. After the printing process, the discharge can be connected to the bagging machine to save labor.
2. Technical Specifications
| Machine running speed | Up to 85pcs/min (printing speed varies from bottles to bottles) |
| Product height | 20-300mm |
| Round bottle diameter | 20-120mm |
| Flat bottle radius | 50-250mm |
| Flat bottle width | 20-160mm |
| Maximum printing area | length 300* height 200mm |
| Gas supply | 0.15mpa |
| Air pressure requires | 6-7 BAR |
| Voltage requirement | 3-phase 5-wire 380V 50/60Hz |
| Rated power | 7KW(1 color ) * N colors |
| Machine weight | Main machine-1200kgs; Auxiliary machine-1000kgs |
| Machine size |
Main machine-L 2900mm * W 1200mm * H 2000mm(excluding feeding and uploading convey belt) Auxiliary machine-L 1190mm * W 1200mm * H 2000mm |
3. Applicable industries:
The machine is mainly used for cosmetics, daily chemicals, food, drugs, health care products, baby products, automotive products, cleaning products, alcohol, glass glue, toys, sporting goods and so on.
4. Scope of application:
The machine is suitable for single or multi-color screen printing on the surface of containers of various shapes such as round, oval, square and complex shapes. Container materials include plastic, glass and metal. Containers include jars, bottles, cups, lids and rigid tubes.
5. Main functions:
SL Series Machine: Core Functions (Simplified)
1. Feeding & Positioning
Speed-driven feeding
Manipulator vacuum directional feeding
Pre-positioning
2. Surface Treatment
Speed-controllable stepper motor-driven bottle surface treatment
Flame surface treatment
3. Screen Printing
Automatic screen printing
Container internal inflatable printing (pressure-adjustable)
Motorized print head lifting/lowering
4. UV Curing (Cylindrical Containers)
High-intensity US UV lamp curing
Optional LED-UV curing
Speed-adjustable motor rotation (for uniform curing)
5. Unloading & Conveying
Manipulator vacuum unloading
Unloading conveyor (speed-controllable)
Printing sample
