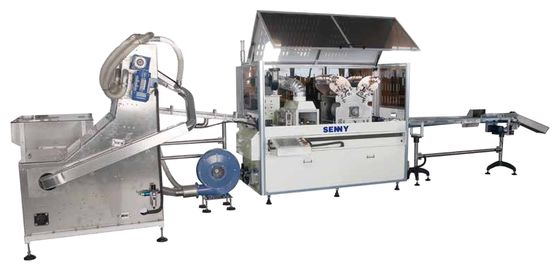

2 color 1600pcs/min high speed bottle caps UV offset printing machine
उत्पाद विवरण:
| उत्पत्ति के प्लेस: | चीन |
| ब्रांड नाम: | SENNY |
| प्रमाणन: | CE |
| मॉडल संख्या: | SOC2168 |
भुगतान & नौवहन नियमों:
| न्यूनतम आदेश मात्रा: | 1पीसी |
|---|---|
| मूल्य: | USD8950-9000/PC |
| पैकेजिंग विवरण: | प्लाईवुड पैकेज |
| प्रसव के समय: | एक माह |
| भुगतान शर्तें: | टी/टी |
| आपूर्ति की क्षमता: | 10pcs /महीना |
|
विस्तार जानकारी |
|||
| नियंत्रण प्रणाली: | पीएलसी नियंत्रण | मुद्रण संकल्प: | उच्च संकल्प |
|---|---|---|---|
| मशीन का प्रकार: | स्वचालित | मुद्रण अवधि: | उच्च अवधि |
| शरारत: | सीईएस एसजीएस | छपाई की गुणवत्ता: | उच्च गुणवत्ता |
| सामग्री अनुकूलता: | प्लास्टिक, धातु, कांच के ढक्कन | प्लेट प्रकार: | बंद निरीक्षण -मशीन |
उत्पाद विवरण
Product Description
It is specially designed for customers who need bottle cap printing with high-speed, lower cost and simple operation. Machine design is based on the principle of dryoffset printing, equipped with unique magnetic rollers, two sets of dual-color offset printing units and one set of vanishing unit, it can achleve image printing with accurate registration and overlap. Control by PLC with touch screen interface, it organizes a high efficiency production line.
1. Features:
- Equipped with two automatic escalators, it can store a large volume of caps and feed the correct number of caps into the unscrambler.
- Two unscrambler are used for guide the caps to the correct direction and feed to the main printing machine.
- This cap printing machine equipped with 1 set of 3-color offset printing unit
- Standard using LPG gas for surface treatment before printing.
- 2 flame heads, which make the surface treatment more efficiently.
- The jig mandrel will be made according to the samples' specification given to us, and delivered together with the machine.
- The Fusion UV system has automatic temperature control and extraction system which avoid the lamp over-heated & maximized the lamp efficiency.
- This system composed by bottle cap counter and printing detection system.
2. Technical Specifications
| Machine running speed | Up to 1600pcs/min |
| Gas supply | 0.15mpa |
| Air pressure requires | 6-7 BAR |
| Voltage requirement | 3-phase 5-wire 380V 50/60Hz |
3. Applicable industries: cosmetic, daily chemical, food, pharmaceutical, health products, baby products, automotive supplies, cleaning supplies , alcohol, glass glue, toy, sporting goods and so on.
